Description

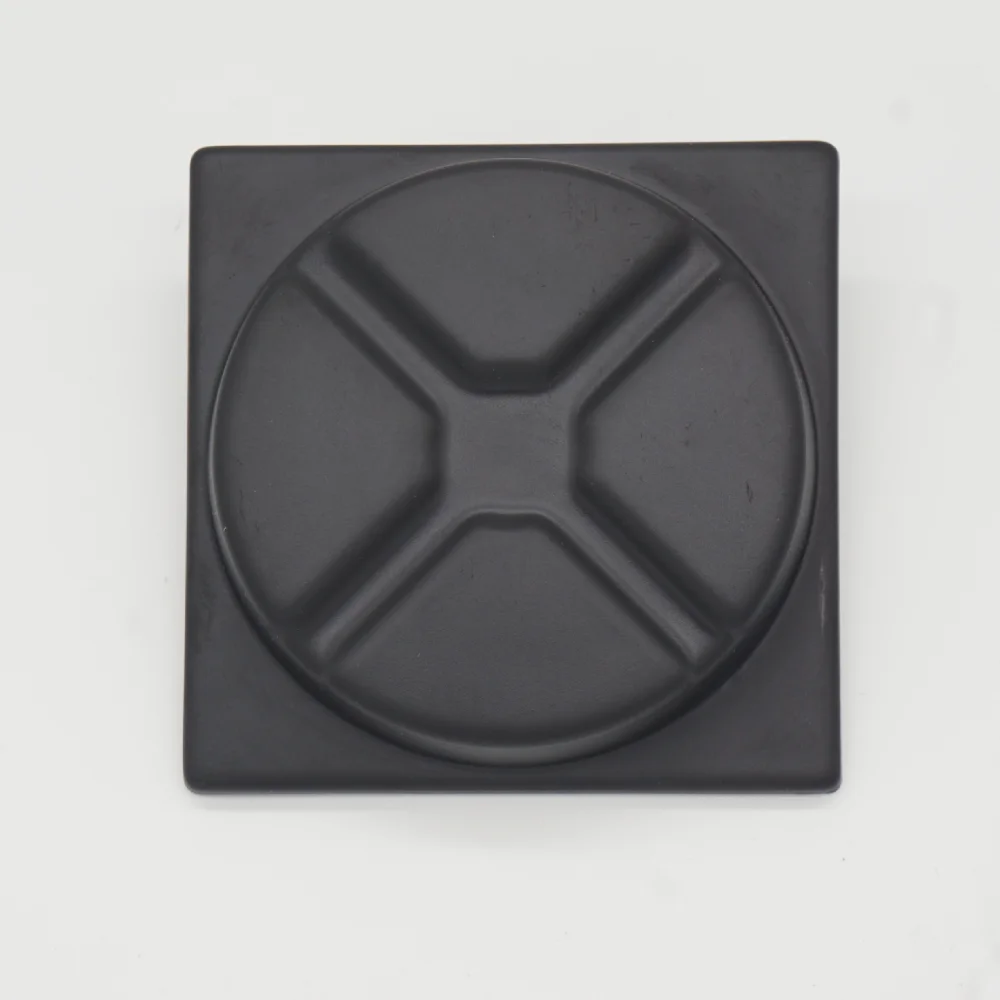

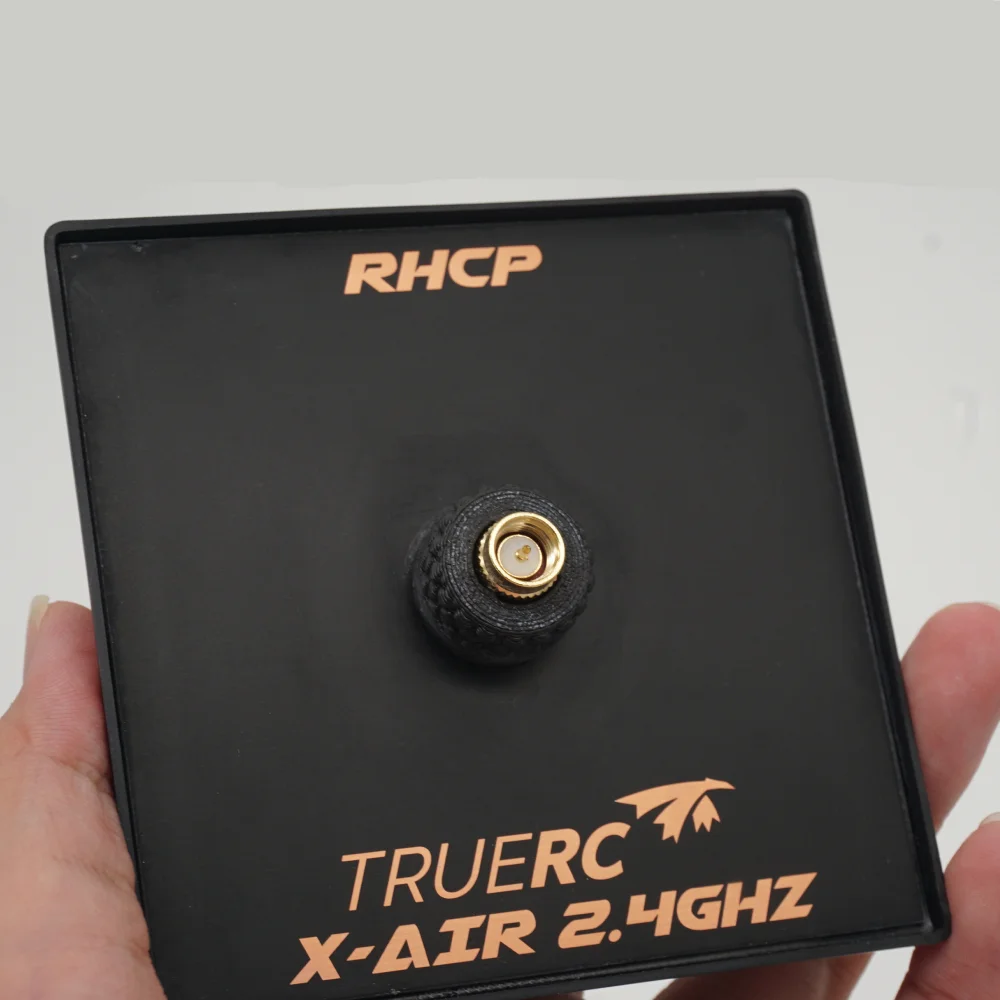

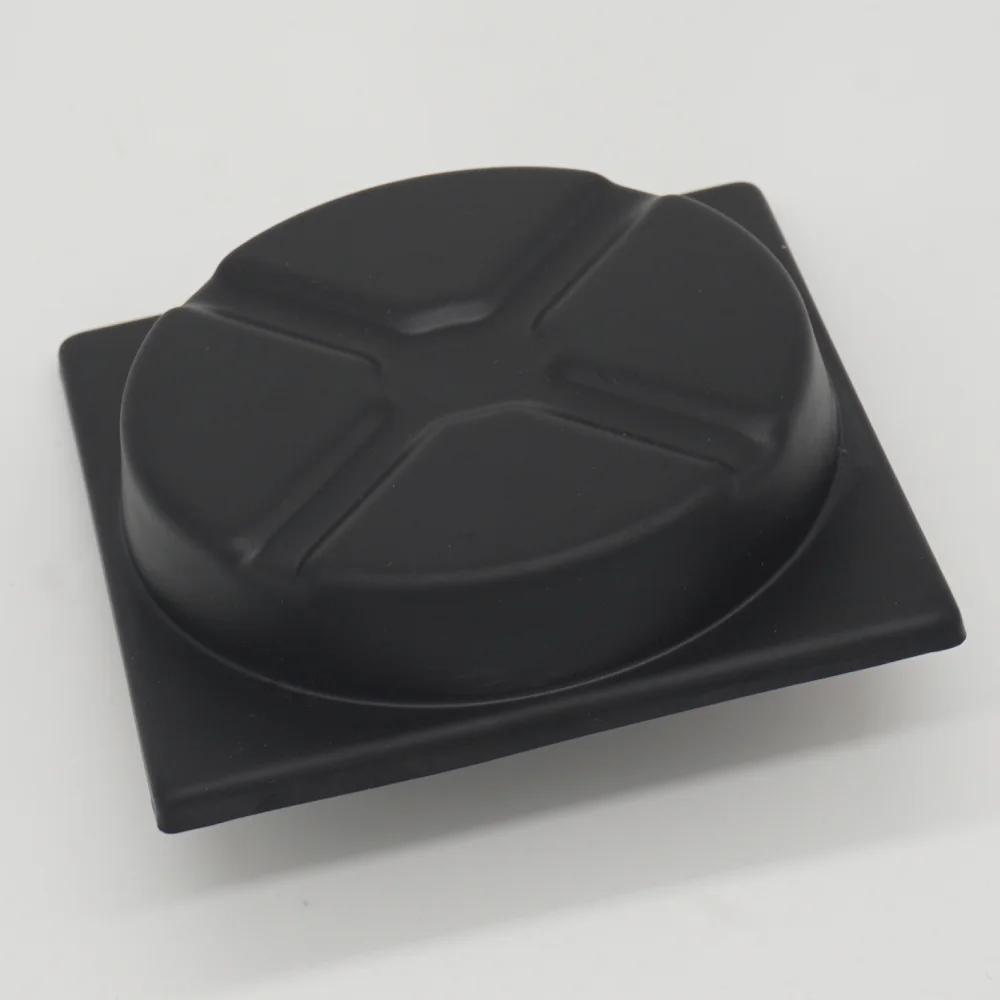

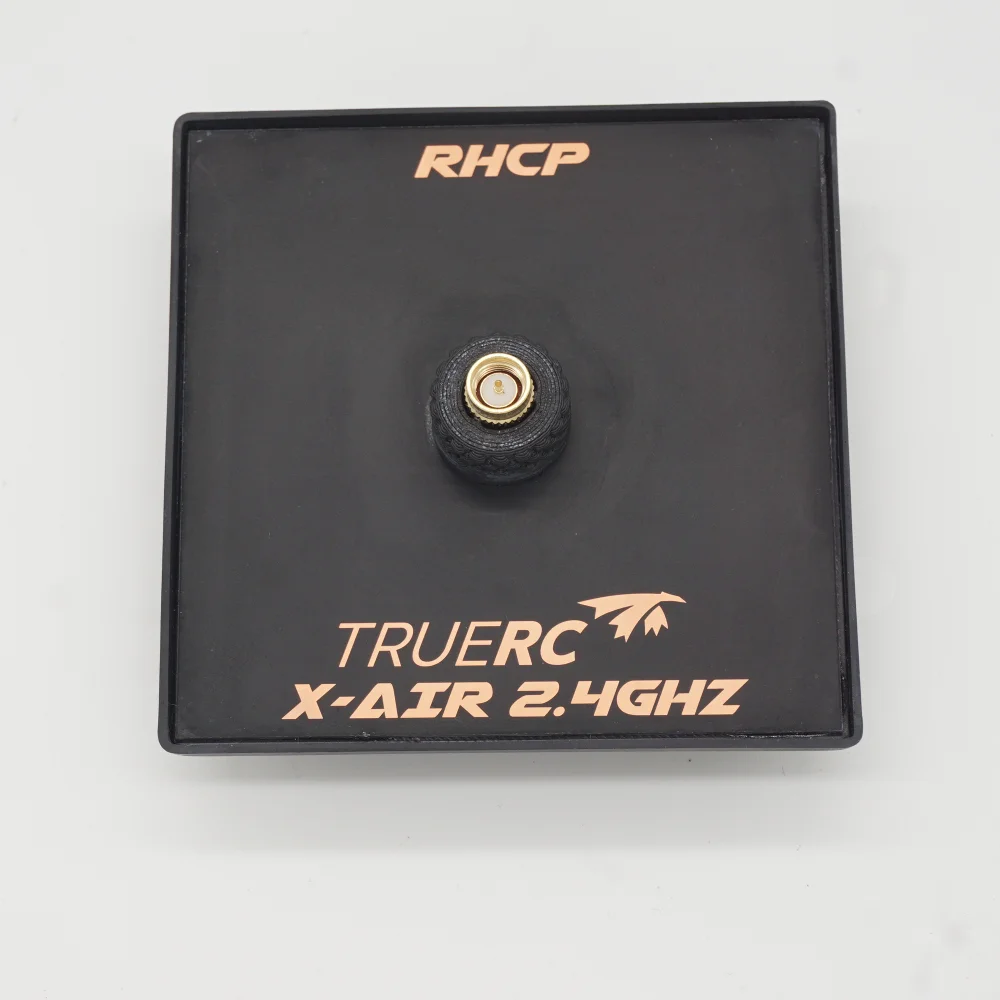

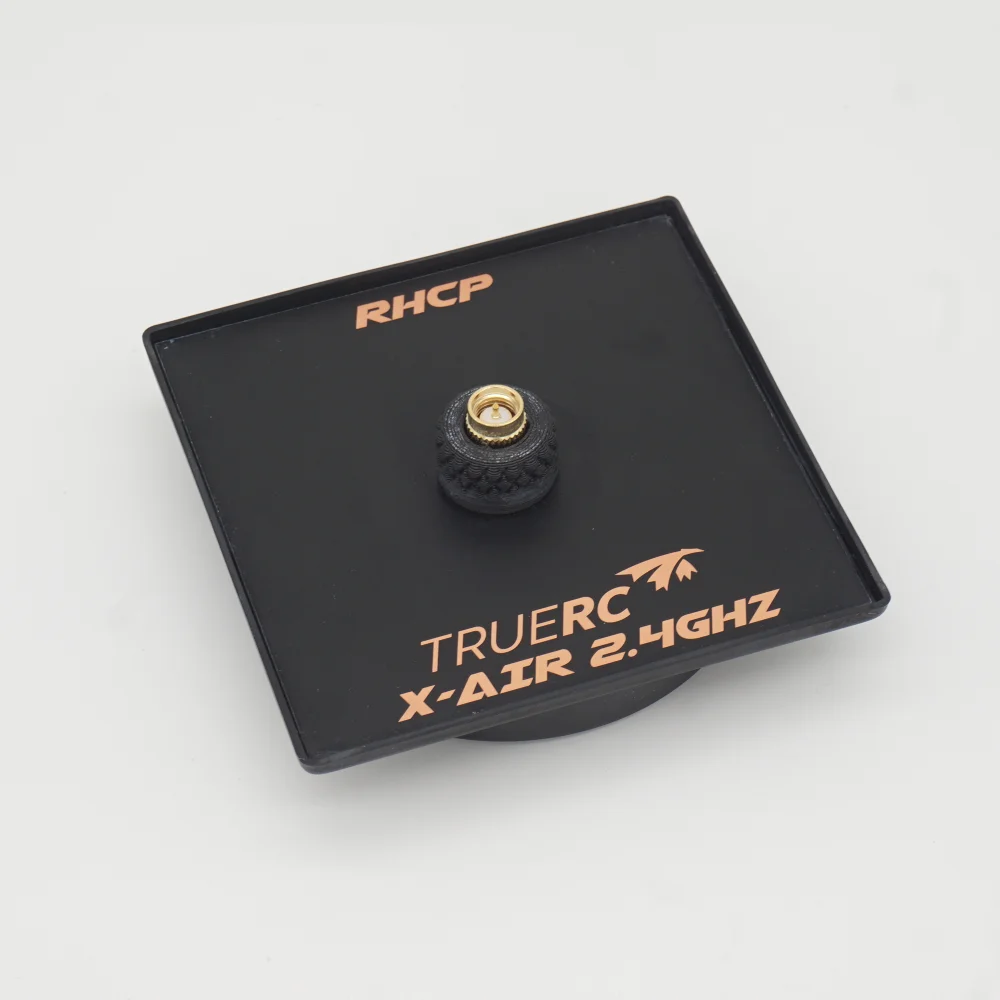

The X-AIR 2.4 Mk. II is our latest redesign of the X-AIR 2.4 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment.

Specs

Bandwidth: 2.3GHz-2.6GHz

Gain: 9.5-10 dBic

Polarization: RHCP or LHCP

Beam-width*: 120deg

Beam-width @-3dB**: 68deg.

Connector: SMA male

Dimension: 82 x 82 x 24mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
